At a glance
Key specifications.
- Engine displacement
- 114cc
- Starting system
- Electric
About this model
Built for more journeys.

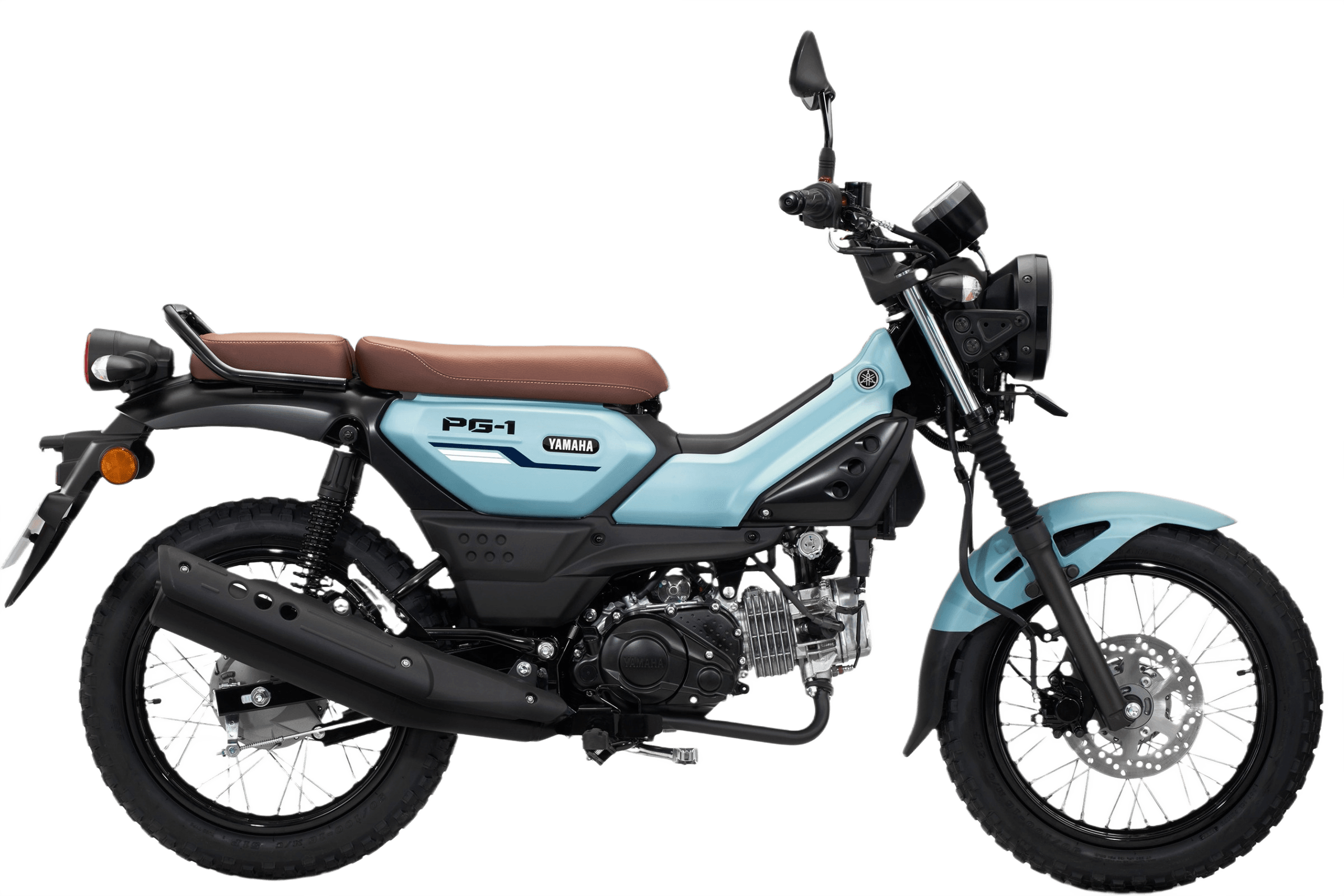

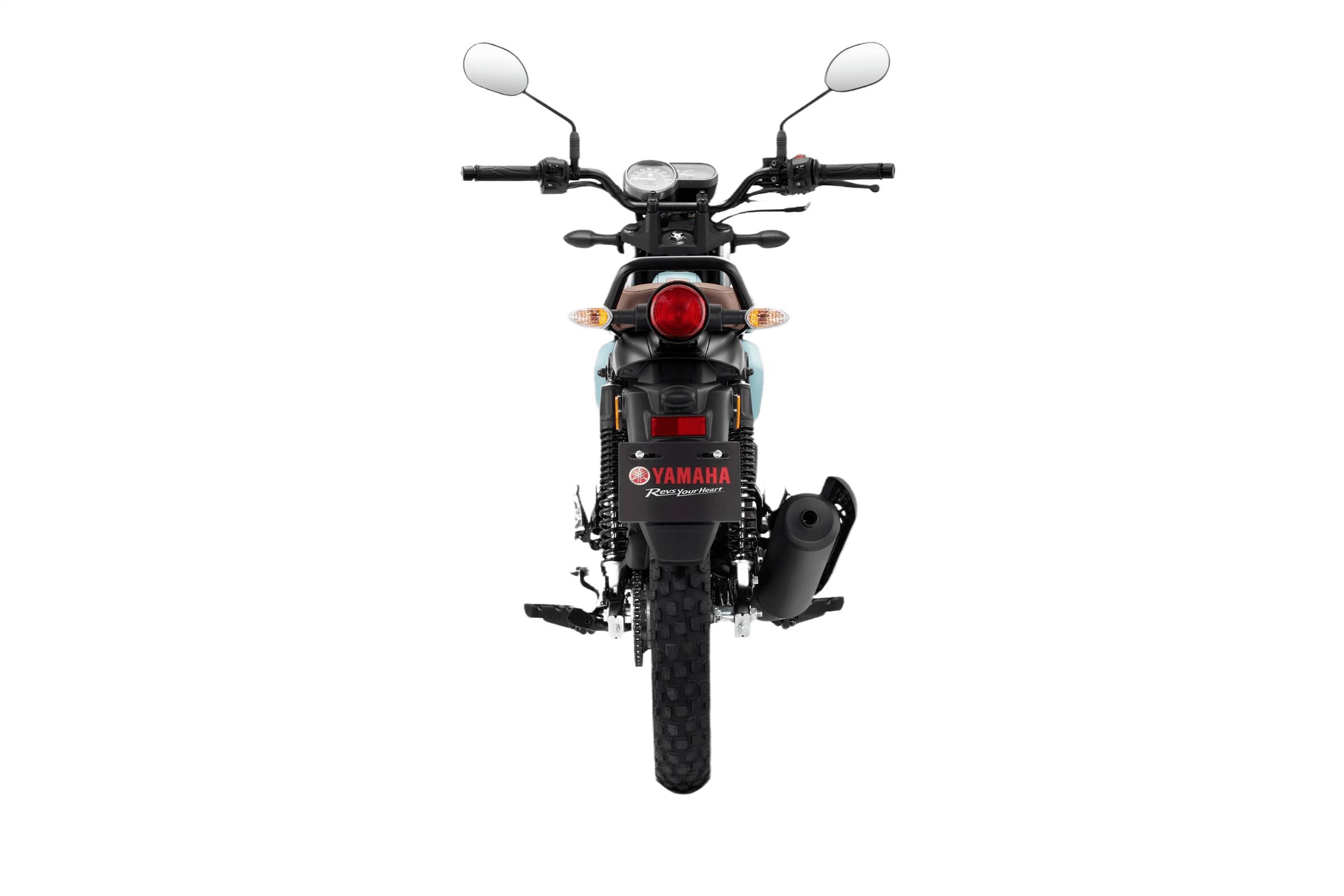

The Yamaha PG-1 is a lightweight, adventure-style underbone designed for both daily city commuting and light off-road trails. Combining rugged scrambler aesthetics with commuter practicality, it features an upright riding posture, wire-spoke wheels wrapped in block-pattern dual-purpose tires, and a distinctive split seat.
SpecificationsEngine, chassis and dimensions
Specifications sourced from the manufacturer. Confirm current details with a branch before making a decision.
Engine
- Engine type
- Single Cylinder 4-Stroke SOHC 2-Valve
- Engine displacement
- 114cc
- Bore × stroke
- 50.0 x 57.9 mm
- Compression ratio
- 9.3:1
- Maximum torque
- 9.5Nm @ 5500rpm
- Cooling system
- Air Cooled
- Starter
- Electric
Transmission
- Transmission type
- 4-Speed Manual Gearbox
Chassis
- Frame
- Backbone
- Front suspension
- Telescopic Fork
- Rear suspension
- Swingarm
- Front brake
- Hydraulic Single Disc
- Rear brake
- Drum (Mechanical Leading Trailing)
- Front tyre
- 90/100-16 Motorcycle 51P Tube-type Tire
- Rear tyre
- 90/100-16 Motorcycle 51P Tube-type Tire
Dimensions
- Overall length
- 1980mm
- Overall width
- 805mm
- Overall height
- 1050mm
- Wheelbase
- 1280mm
- Seat height
- 795mm
- Ground clearance
- 190 mm
- Fuel capacity
- 5.1L
- Kerb weight
- 107kg
